Description:

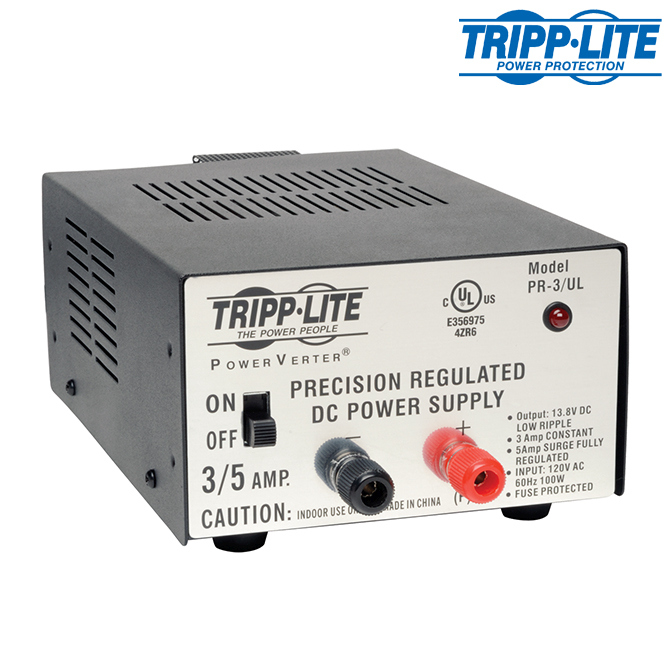

3 Amp AC-to-DC Power Supply
Features:
- Provide precise, UL-certified DC power from an AC source with this lightweight and compact DC Power Supply
- Converts 120 volts AC into 13.8 volts DC power
- Smaller footprint maximizes operating space
- Current-limiting electronic foldback enables automatic overcurrent protection in case of overload
- Solid state, integrated circuit maintains excellent regulation of output voltage
- Regulated output voltage maintains up to 95% of no load value
- High quality filtering creates very low ripple/low noise operation
- Heavy-duty power transformer provides complete isolation from noise on incoming AC power
- Large heat sinks and vented cabinets supply cool operation for continuous use and long life of the unit
- Illuminated on/off switch
Specifications:
- Tripp Lite Part #: PR3UL
- Dimensions: 4-1/4''H x 3''W x 7-1/2''D
- Connectors: Hardwire terminals / Red positive (+), Black negative (-)
- Working Temperature Range: 0° C to 40° C (32° F to 104° F), 0 to 95% humidity, non-condensing
- Storage Temperature Range: -15° C to 50° C (5° F to 122° F)
- LED Indicators: Red LED indicates that DC output is being provided
- Full UL Certification
- Click Here for Product PDF
