Description
Description:

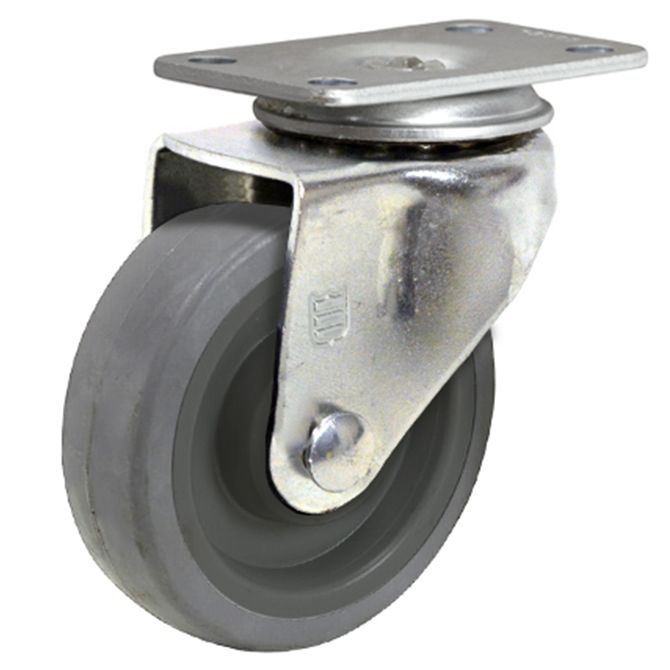

3" Swivel Caster with Top Plate
Features:
- Constructed from heavy duty gauge steel, formed for extra strength
- Bright zinc plated
- Full double ball swivel raceway, hardened to resist wear
- 3/8" diameter axle bolt with lock nut
- 1/2" king pin, hydraulically upset to increase shock absorbing capacity
- Thermoplastic rubber tread chemically bonded to a high-impact polypropylene core
- Non-marking and floor protective with higher load capacities than standard rubber
Specifications:
- Diameter: 3"
- Tread Width: 1-1/4"
- Tread Material: Thermoplastic Rubber
- Fitting: Top Plate
- Bearing: Annular
- Load Height: 4"
- Swivel Radius: 2-7/8"
- Weight Capacity: 220 lbs.
- When ordering, please specify top plate size
ACTUAL PRODUCT & COLORS MAY VARY FROM WHAT IS SHOWN
Additional Information
Caster Type: |
Swivel |
Load Rating: |
Medium Duty |
Wheel Diameter: |
3" |
Tread Width: |
1-1/4" |
Mount Type: |
Top Plate |
Tread Material: |
Thermoplastic Rubber |
Bearing Type: |
Annular Ball |
Brake Option: |
No Brake |
